G92Z0 - sets work coordinates along the Z-axis to 0. I start scanning whenever the axis is in the home position. Doing (a manual) touch down on the touch plate, I don't see. On the 'Machine diagnostics' tab I now have a active green probe indication. Step 3 > Mach4 > Controls > Input signals > Configured the probe. Step 2 > Mach4 > Plugins > ESS > Pins Signal > Configured the probe. SKU: Prj-Touchoff Categories: CNC Products, CNC Projects, DIY, Projects Tags: DIY, Touch-off. Step 1 > Wired up touch plate with GND+Port2 Pin10 on the breakout board. DIY Project - CNC tool Touch-off Probe quantity.
CNC TOUCH PLATE PROBING ON MAC CODE
Here is my code that works on my machine. Rated 5.00 out of 5 based on 1 customer rating. I don't know what kind of machine you have.
If you use soft borders in GRBL then your Z-axis with your code should be at least 80 mm. Please add the ability and even the product for 3 axis touch plate zeroing.

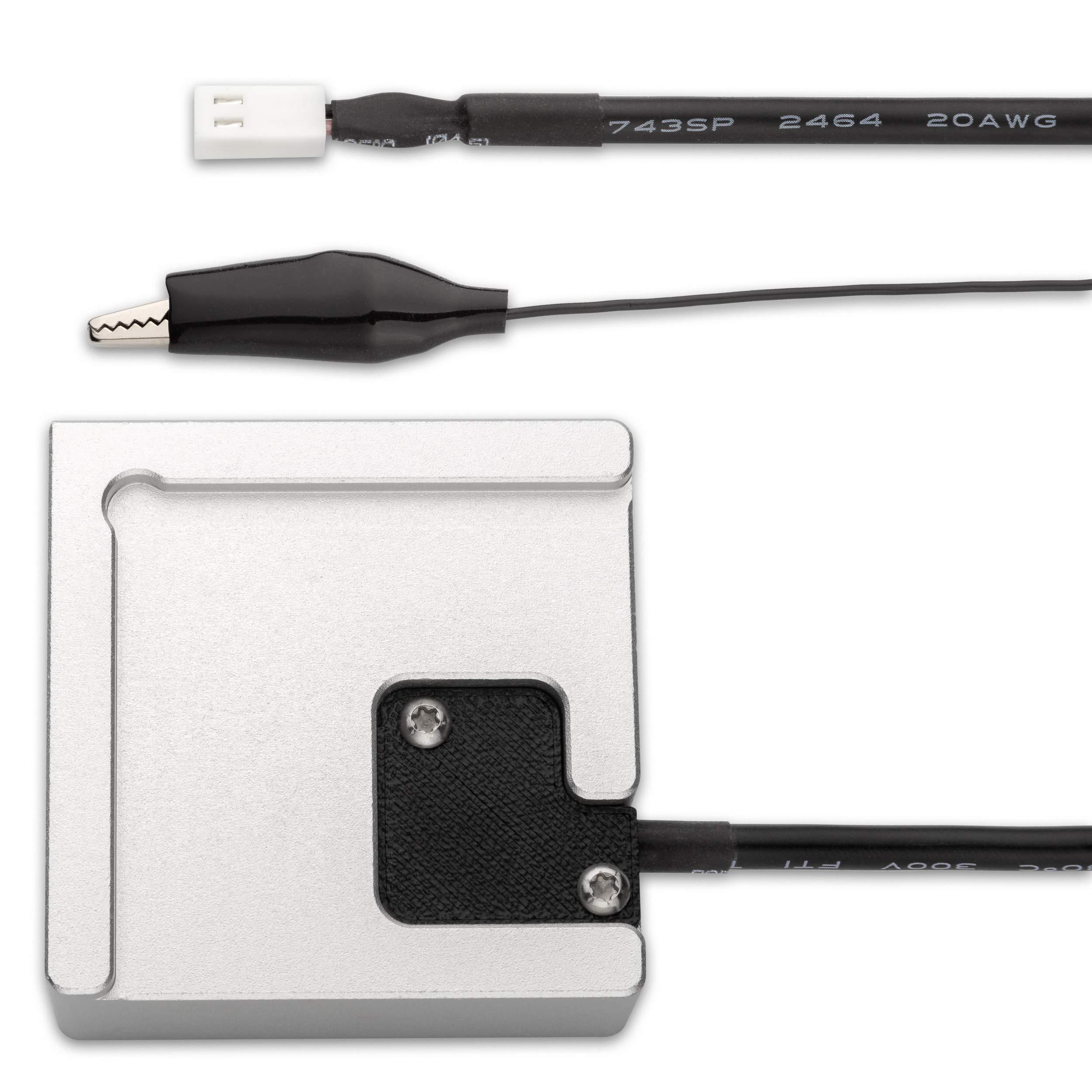

I would quickly purchase one, and I am sure other Easel users would too. (maybe you need it that way, I don't know) Please add the ability and even the product for 3 axis touch plate zeroing. your code sets the origin of the working coordinates at 19.5mm from the probe point. The probing system is a measuring tool configured on CNC machines to measure the features of CNC machined parts, correct the coordinate system, recognize error, etc., after partial or final machining operation, which can improve the machining quality of the manufacturing equipment, reduce cost and save time. G92Z19.5 - G92 command sets the origin of work coordinates Z-axis. Why drop another -40mm if the workpiece is 0.5mm below the probe? I think that with this command, the machine goes into an accident, because it goes beyond the size of the Z-axis. Buy SainSmart CNC Router Z-Axis Tool Setting Touch Probe, Compatible with GrblMach 3 online at an affordable price. O_o we are working on relative coordinates. G38.2Z-40F50 - start scanning from a height of 0.5 mm to a depth of -40 mm. G0Z0.5 - after triggering the probe, raise the Z-axis by 0.5 mm G38.2Z-40F100 - scan to a depth of -40 mm at a speed of 100 mm / min
